Shihlin Electric Indonesia products: BWA1600-S air circuit breaker, BM250-SN moulded case circuit breaker, RPC miniature circuit breaker and S-P12 magnetic contactor. Powering Indonesia's next chapter.

Shihlin Electric Indonesia: power protection and control

Precision electrical protection and control systems for Indonesia.

Explore products View specifications
70+ years of engineering IEC certified solutions 6,300A protection range

From the smallest circuit to the largest facility,

protection is the foundation of progress.

Built to international standards
SNI · IEC 60898 · IEC 60947

PRODUCT PORTFOLIO

One system.
Every level of protection.

Designed to work together, from final circuit protection to complete motor control and main distribution.

Product photography sourced from Shihlin Electric's official product pages.

TECHNICAL CATALOGUE

Find the right fit.

Browse product ranges and compare core specifications. For final selection and coordination studies, speak with our technical team.

Series / ModelProduct typePolesCurrent rangeCapacity / RatingStandard / Format

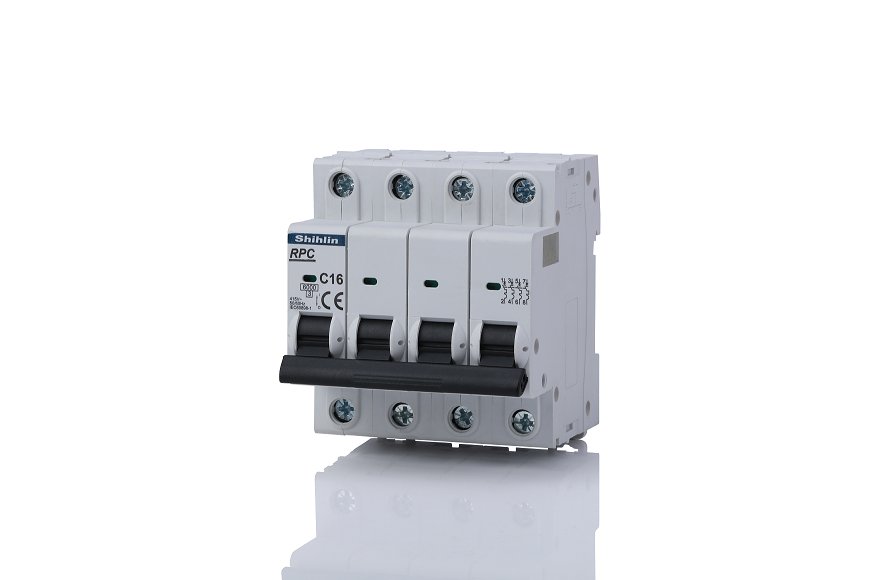

RPCMCBCatalogue PDFMiniature Circuit Breaker · 6 kA, curve C1P–4P2–63 A6 kASNI-LMK / IEC 60898
RPCHMCBCatalogue PDFMiniature Circuit Breaker · 10 kA, curve C1P–4P2–63 A10 kASNI-LMK / IEC 60898
BM30–BM800 CNMCCBCatalogue PDFMCCB Economy Series2P–3P5–800 AIcu 1.5–35 kA / 380 VIEC 60947-2
BM30–BM800 SNMCCBCatalogue PDFMCCB Standard Series2P–4P10–800 AIcu 2.5–50 kA / 380 VIEC 60947-2
BM63–BM1200 HMCCBCatalogue PDFMCCB High Capacity Series3P–4P15–1,250 AIcu 15–100 kA / 380 VIEC 60947-2

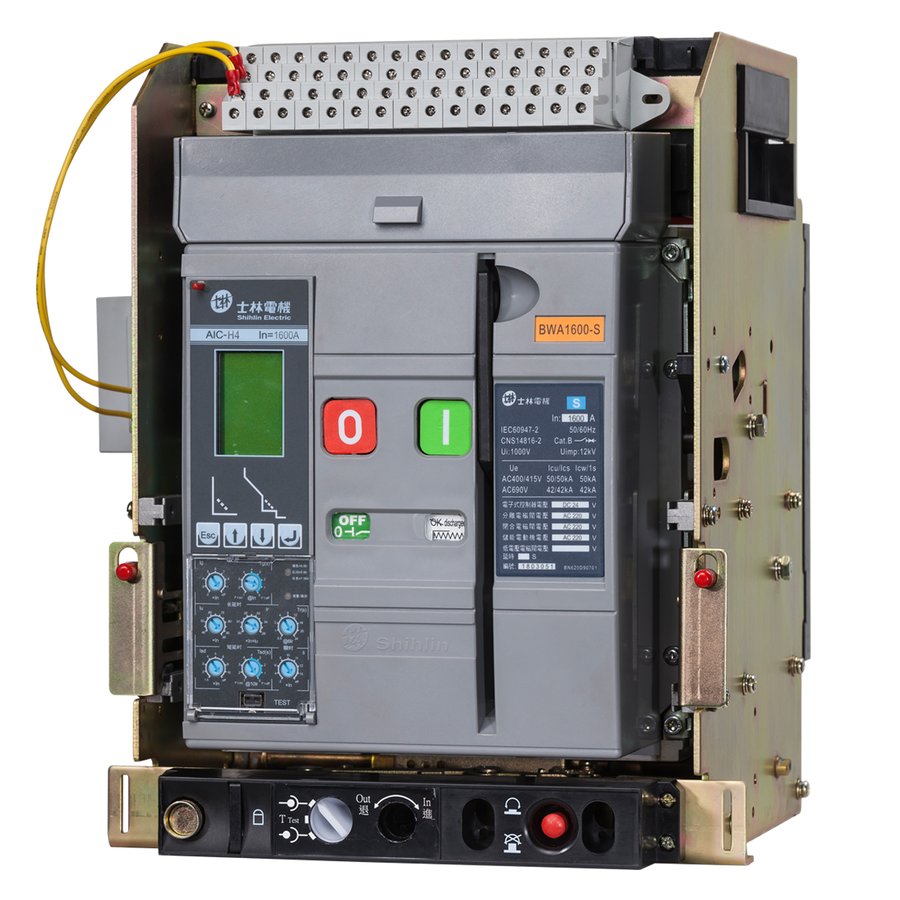

BW1600SNACBCatalogue PDFCompact Air Circuit Breaker · automatic type3P / 4P1,000–1,600 A65 kA @ 415 VFixed / Draw-out
BW2000-HSACBCatalogue PDFAir Circuit Breaker · automatic type3P / 4P1,000–2,000 A85 kA @ 380 VFixed / Draw-out
BW3200-HSACBCatalogue PDFAir Circuit Breaker · automatic type3P / 4P2,500–3,200 A100 kA @ 380 VFixed / Draw-out
BW4000-HSACBCatalogue PDFAir Circuit Breaker · automatic type3P / 4P4,000 A100 kA @ 380 VFixed / Draw-out
BW6300-HSACBCatalogue PDFAir Circuit Breaker · automatic type3P / 4P5,000–6,300 A130 kA @ 380 VDraw-out
ACB AccessoriesACBCatalogue PDFUVT · Shunt release · Closing coil · Motor drive · Mechanical interlock · Key locks—220 V ACFor BW seriesAdd-on / replacement

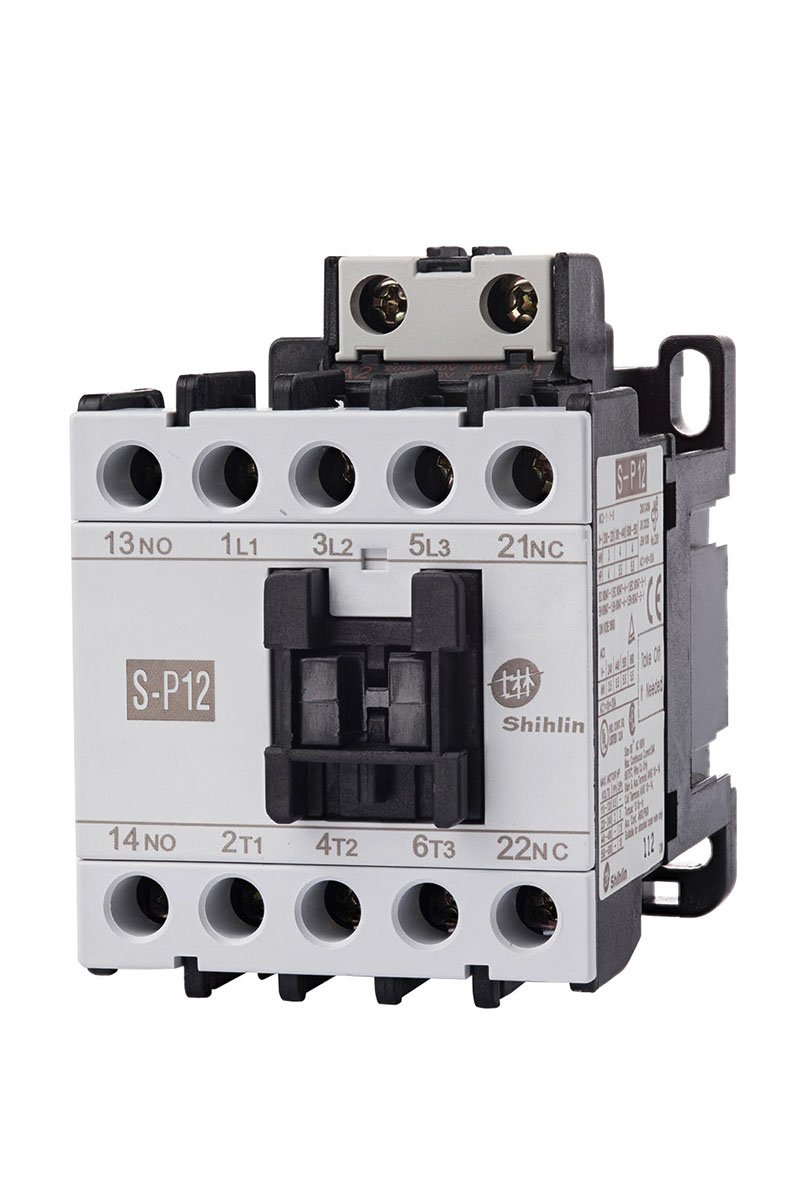

S-P SeriesContactorsCatalogue PDFMagnetic Contactor · AC coil3PAC3 10.1–630 A4–335 kW (380 V)IEC 60947-4-1
S-P N4 SeriesContactorsCatalogue PDFMagnetic Contactor · 4 pole4PAC3 25–40 A11–18.5 kW (380 V)IEC 60947-4-1
SD-P SeriesContactorsCatalogue PDFMagnetic Contactor · DC 24 V coil3PAC3 13–24 A5.5–11 kW (380 V)IEC 60947-4-1
SR-P SeriesContactorsCatalogue PDFContactor Relay2NO+2NC · 4NO · 4NO+4NCIth 16 AControl circuitsIEC 60947-5-1
RC-11CContactorsCatalogue PDFContactor Reverser3P · 4NO+2NCAC3 12 A3 kW (380 V)IEC 60947-4-1
SC-P SeriesContactorsCatalogue PDFCapacitor Contactor3P16–86 A12.5–60 kVAR (400–440 V)IEC 60947-5-1
SMC2P / SMC4PContactorsCatalogue PDFSingle Magnetic Contactor · modular2P / 4P16–63 ANO / NC combinationsDIN-rail
AP / APS / APLContactorsCatalogue PDFAuxiliary Contact Blocks · front and side mount1NO+1NC to 4NO—For S-P, SR-P, SD-PAdd-on

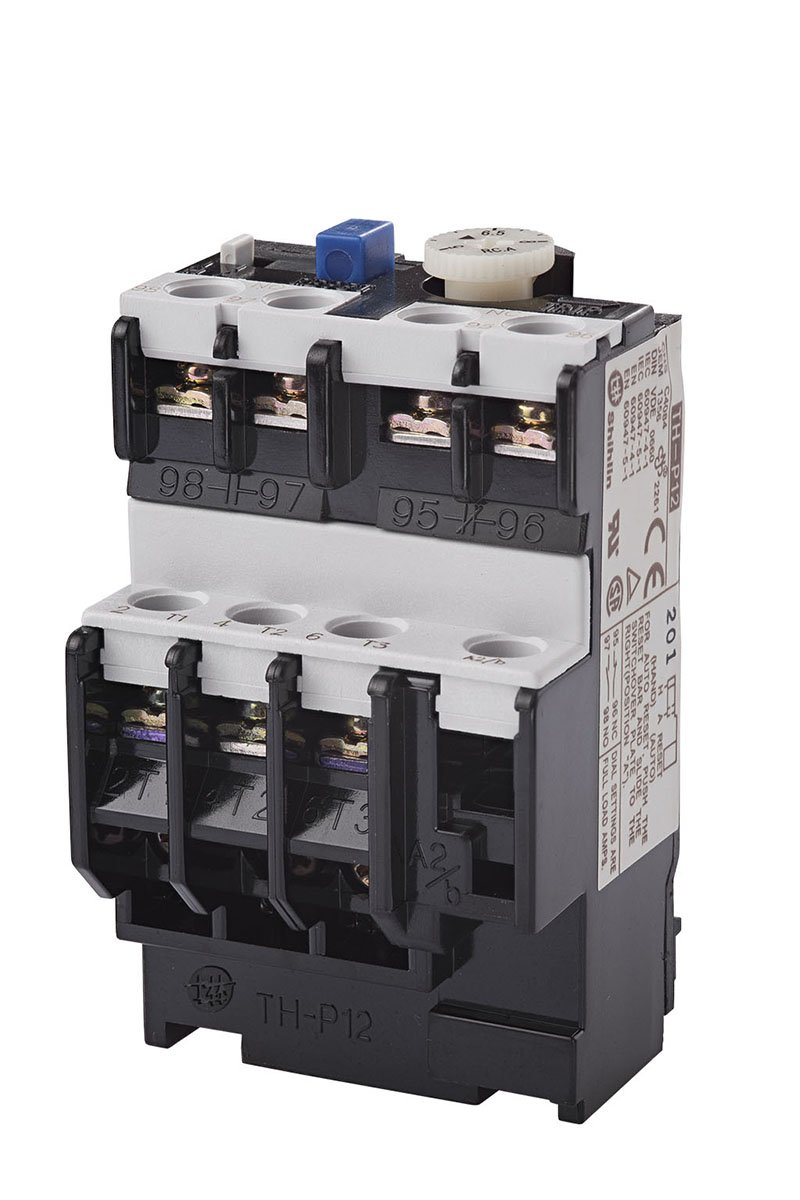

TH-P SeriesOverloadCatalogue PDFThermal Overload Relay · 3-element heater3 element0.25–500 AMatched to S-P09 – S-P400TMotor protection
MS-PEStartersCatalogue PDFDirect-on-line Starter · without buttons1P / 3P1.7–21 A0.1–11 kW220 V / 380 V
MS-PPBEStartersCatalogue PDFDirect-on-line Starter · ON/OFF buttons1P / 3P0.6–67 A0.1–37 kW220 V / 380 V

Specifications shown are an overview based on the September 2026 reference catalogue. Product availability and final technical selection are subject to confirmation.

CATALOGUES & DOCUMENTS

Official specifications,
ready to download.

Catalogues, dimension drawings and tripping-characteristic curves published by Shihlin Electric & Engineering Corp., mirrored here for Indonesian customers. 99 documents.

Moulded Case Circuit Breakers

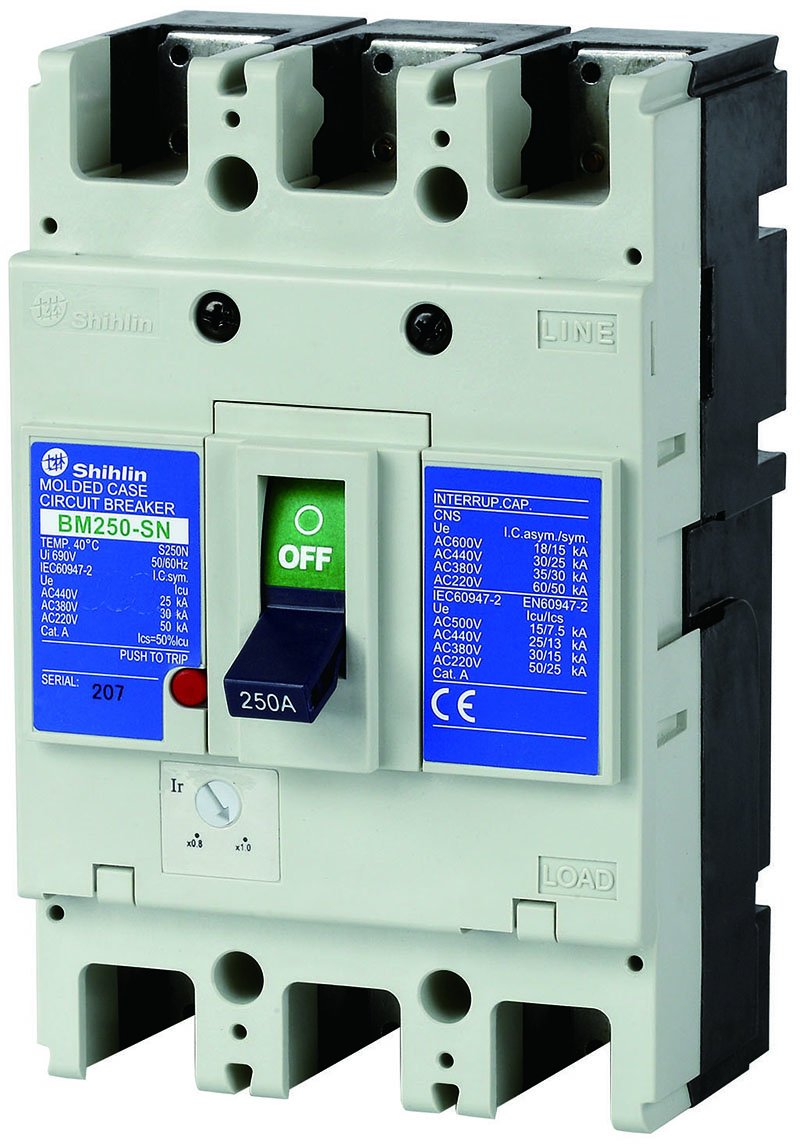

BM series frames from 30 A to 1,250 A in CN, SN, HN, HTA, RTA and HS breaking-capacity grades. On the BM250 frame, Icu at 380 V runs 22 / 30 / 36 / 50 / 70 / 85 kA. Ics = 50 % Icu, adjustable thermal 80-100 % In. Accessories: alarm switch, auxiliary switch, shunt trip, under-voltage trip, rotary handle, terminal cover.

Magnetic Contactors & Relays

S-P series contactors, S-2xP reversing sets, SC-P capacitor contactors, SR-P control relays and SMC modular contactors. IEC 60947-4-1 / EN 60947-4-1 / UL 508 / CSA C22.2. AC coils 100-120 V, 200-240 V and 380-480 V.

Dimension drawings 30

Motor Starters

MS-P and MSO-P direct-on-line and reversing starters, with and without enclosure, built on the S-P contactor and TH-P overload relay.

Dimension drawings 38

Thermal Overload Relays

TH-P three-element thermal overload relays from 0.25 A to 500 A, matched to each S-P contactor frame. PP variants add a reset push button.

Dimension drawings 4
Characteristic curves 7

Documents © Shihlin Electric & Engineering Corp., Taiwan. Source: en.seec.com.tw Download Center. Ratings quoted above are summarised from those catalogues; always confirm against the current document.

PROJECT SUPPORT

Built for your
application.

Need help selecting a breaking capacity, coordinating protection, or matching a starter to your motor? Our team can help translate requirements into a dependable bill of materials.

Start a technical enquiry WhatsApp 0878-1714-8969
01 Product selection 02 Panel coordination 03 Application support

ABOUT

Shihlin Electric,
for Indonesia.

Shihlin Electric has manufactured low-voltage switchgear and industrial control products for more than 70 years. Shihlin Electric Indonesia brings that range to Indonesian panel builders, contractors, and industry, backed by local sales and technical support.

  • Circuit protection MCB, MCCB and ACB ranges from 2 A to 6,300 A.
  • Motor control Magnetic contactors, thermal overload relays and direct-on-line starters.
  • Standards SNI-LMK, IEC 60898 and IEC 60947 compliant product families.
